Thermalgraphy & temperature monitoring detector NKTEVA6 with cable flood alarm

becomes rainy weather, the cable is prone to water flooding, and the harm is great, how to solve it?

Solution

1 Try to secure the cable with the highest bracket possible

2. Do a good job of drainage measures in the cable shaft.

3. NKTEVA6 monitoring device is installed in the cable shaft,

with its own water immersion sensor, and the cable is flooded with alarm, and the engineers drain the water in time

Video capture is also possible, and the cable can also be monitored for overheating

The intelligent distributed red array monitoring and detector NKTEVA6 cable flood alarm is equipped with software

The new version adds a flood alarm function (with a water immersion sensor), and the field of view of the red array is 90 degrees

Wide field of view, very suitable for transformer/high and low voltage cabinet monitoring and cable tunnel comprehensive pipe gallery fire monitoring

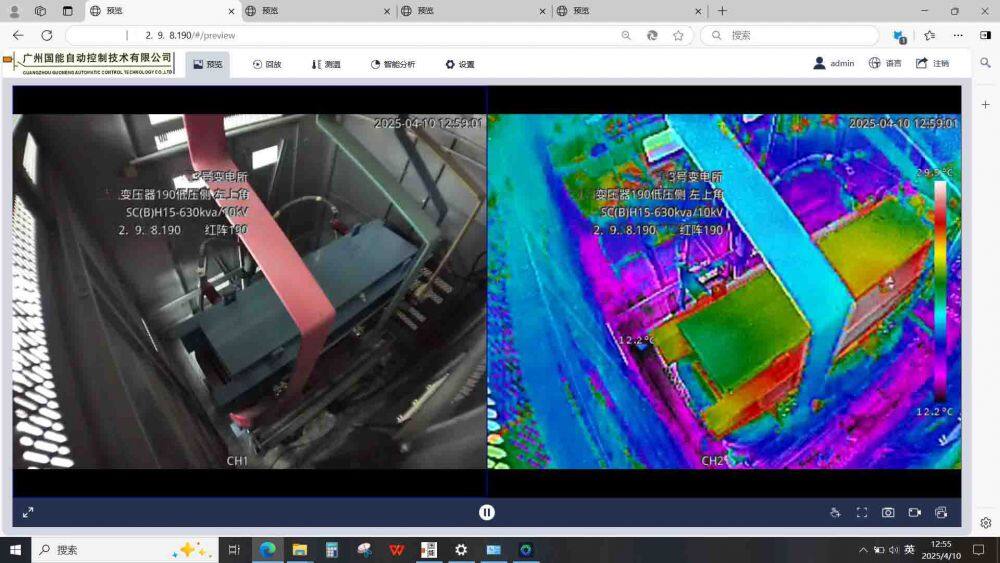

Red Array video can be recorded and captured

The new version of the Red Array has a wider field of view of 90 degrees

Network powered/POE-powered fixed installation

The Red Formation responds faster

One computer on the host computer workstation can run multiple sets of monitoring software at the same time

Internet exaggeration browsing

Windows PC ANDROID phone

Mobile browsing is faster

TS501-94 Distributed Red Array Detector

TS501-95 Red Array Controller 8/16 ports

Comes with LED

NKTEVA6 Distributed Red Array Detector Monitoring Software 2025 Version Instructions for Use

No software installation required Does not occupy the registry Safer Less system resources Faster Runs can be run by unzipping

1 set of red array monitoring and display management software

1 set of over-temperature alarm, cable flooding alarm

(One computer can install multiple sets of software on the host computer workstation and run at the same time)

2 Red Array Controller NKTP 1 set A single NKTP Red Array controller has a maximum of 24 ports of RJ45 power supply and communication

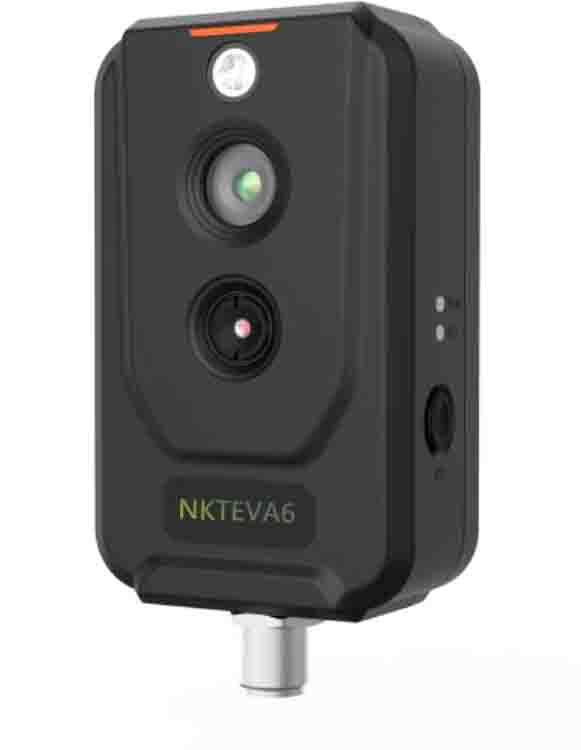

3 Distributed red array detector NKTEVA6 1 set with water seepage sensor and red array detector 256×192 field of view 90 degrees,

(supports Windows PC ANDROID phone browsing and settings).

Real-time, continuous, and easier to use RJ45 network power supply interface, the wiring is simpler and relatively safer

Ideal for large network systems

Wide field of view, very suitable for high and low voltage cabinet monitoring and cable tunnel comprehensive pipe gallery fire monitoring

Provide advanced red array detection temperature imaging video surveillance solutions for on-site condition monitoring:

The new VOx detector can be used to resolve more details; 25Hz frame rate network interface; More advanced Matrix III. image algorithm;

Reduced size and power consumption, easy to install; Compatible with multiple industrial protocols, easy to realize automatic alarm, and compatible with power monitoring SCADA interconnection
